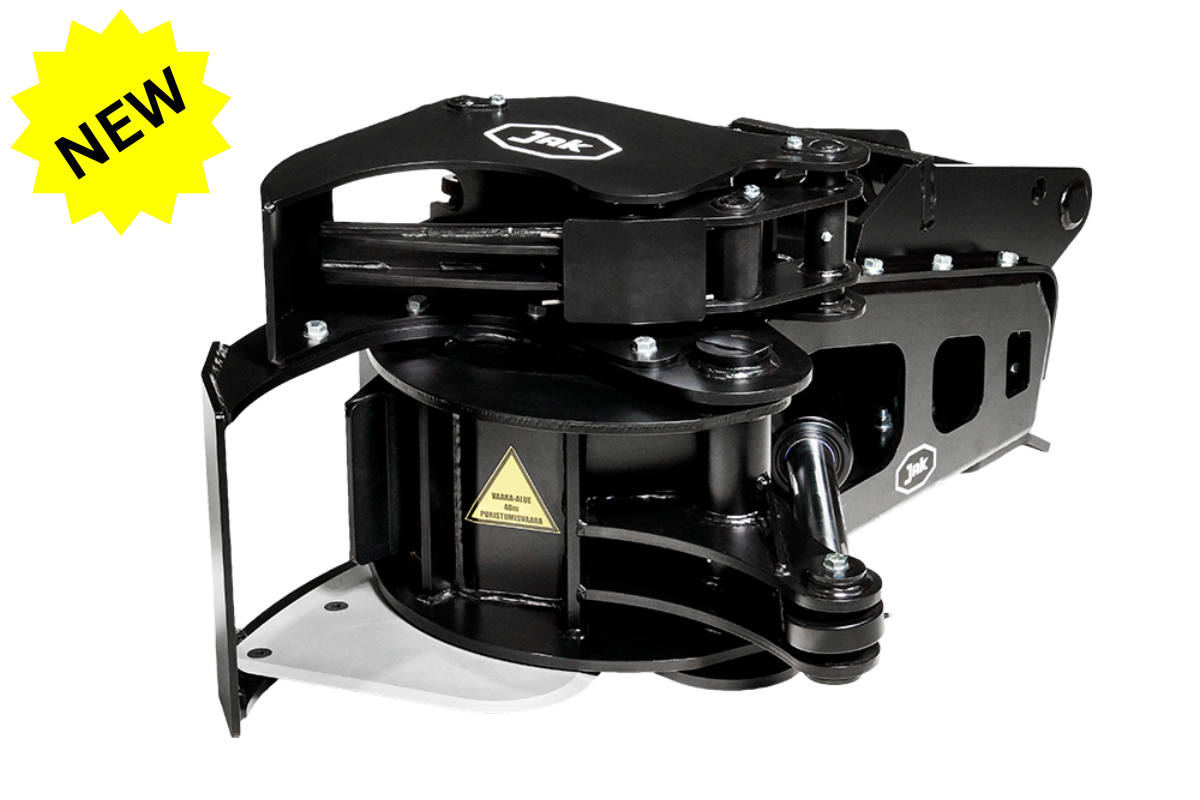

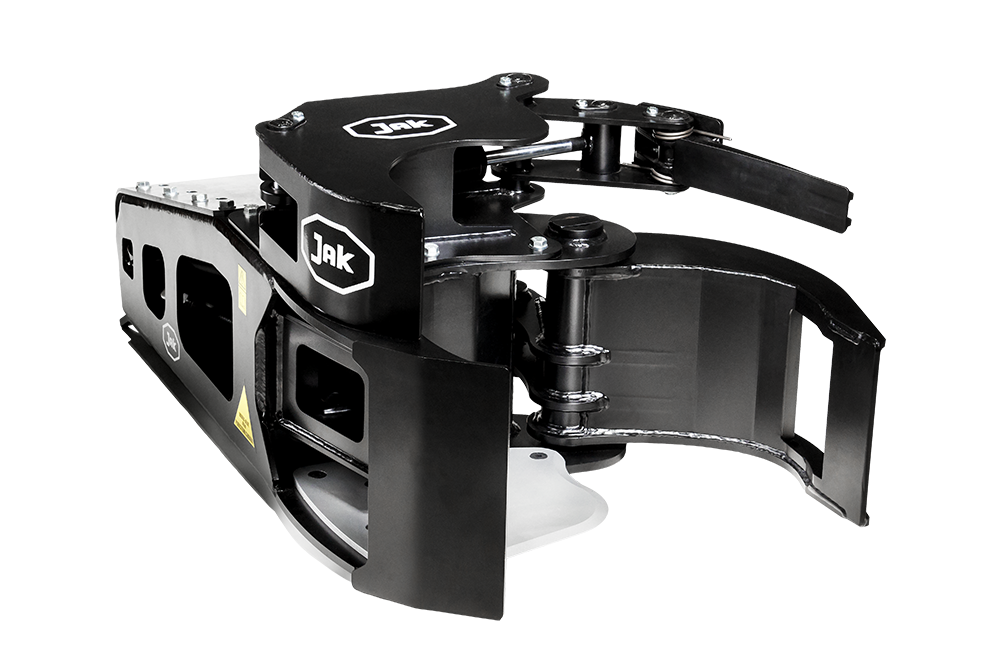

JAK-300C is JAK's newest tree shear, for excavators 6-12T.

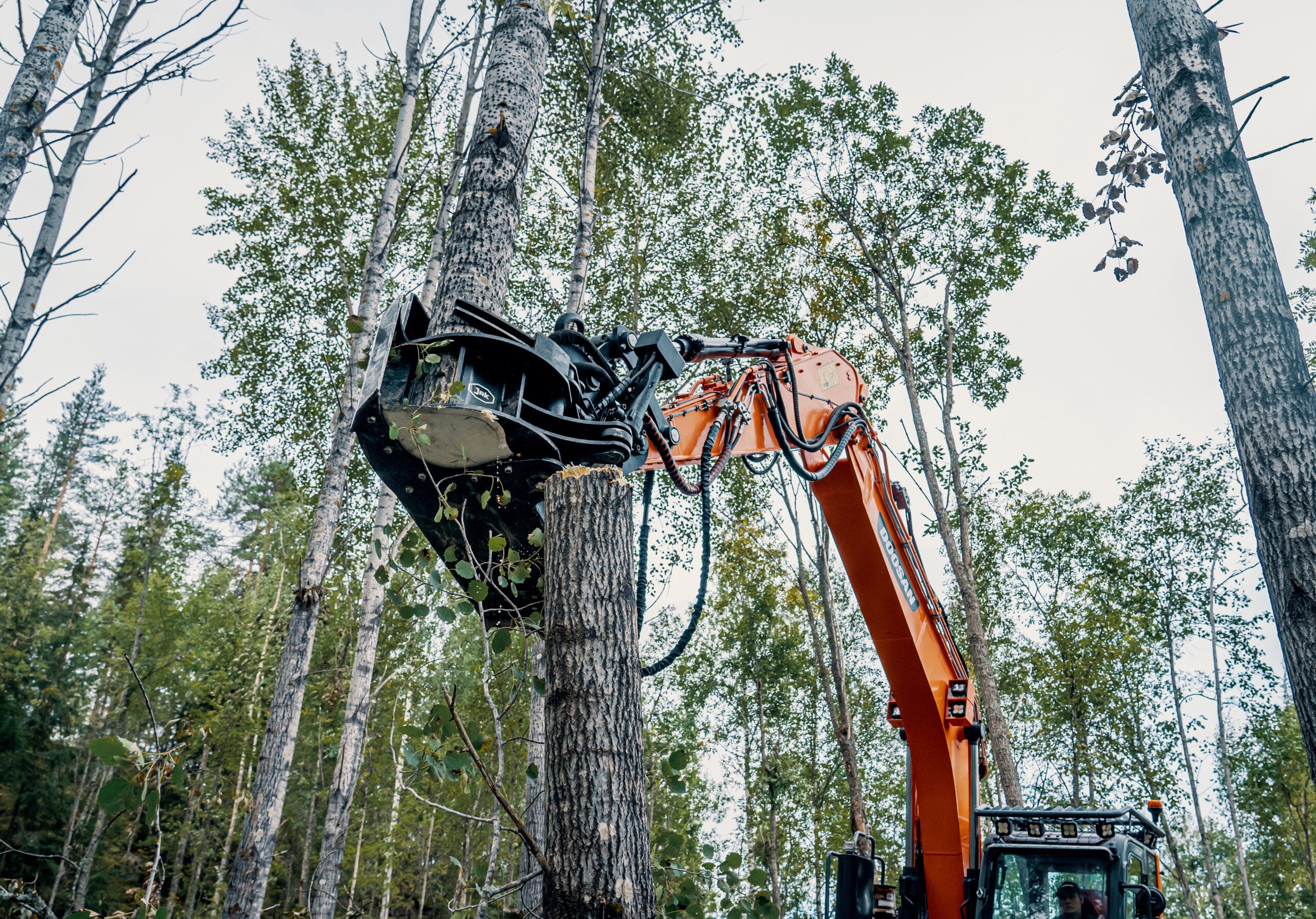

With a 300mm max cutting capacity, this shear is ideal for topping trees, clearfelling smaller trees and brush, and limbing branches.

The cutting force is concentrated on the side of one clamping jaw. This solution enables a lighter structure of the grapple and also a more affordable price.

This multipurpose tree shear model is the result of long-term product development and research.

Manufactured from Hardox steel, the JAK-300C is a heavy duty implement designed to provide years of reliable service.

Thanks to the design and the quick-removable blade, the grapple also works great in many other applications besides felling trees, such as loading, handling materials, etc.

Like other JAK tree shears the blade is replaceable.

The open structure also helps to keep the tree shear clean of wood chips or dirt, so that the grapple does not clog even in intensive use.

Changing the coupling to a different model is an easy procedure if necessary. The same grapple can fit several machines by changing the adapter plate.

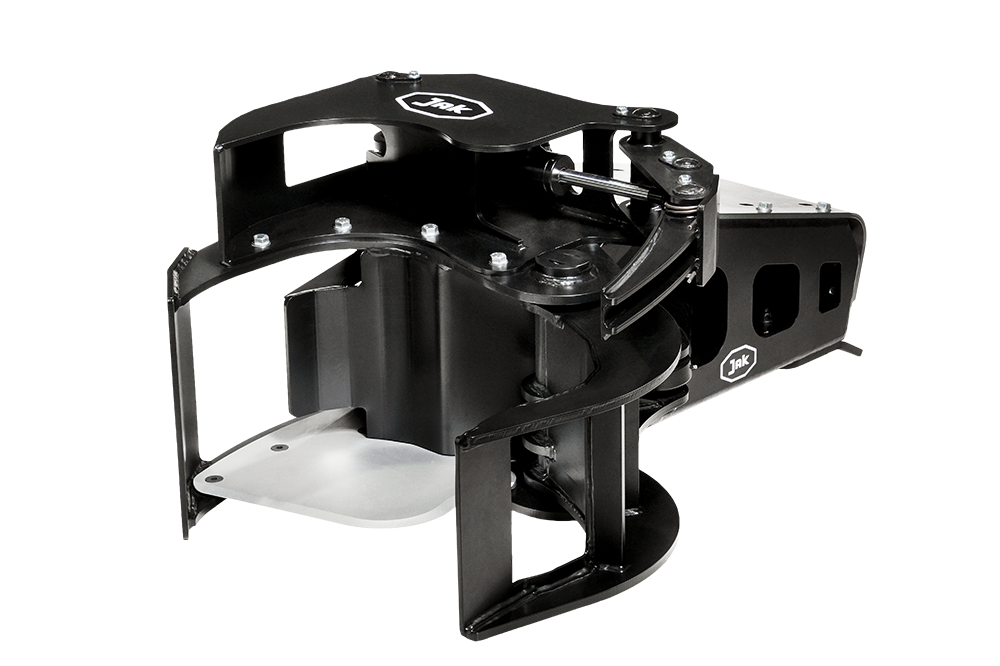

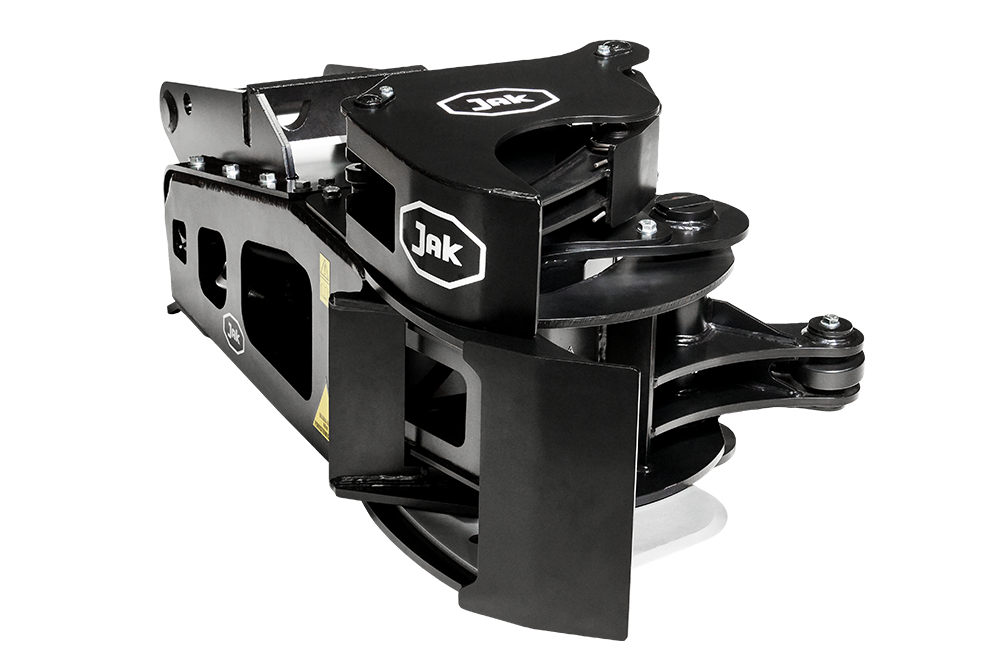

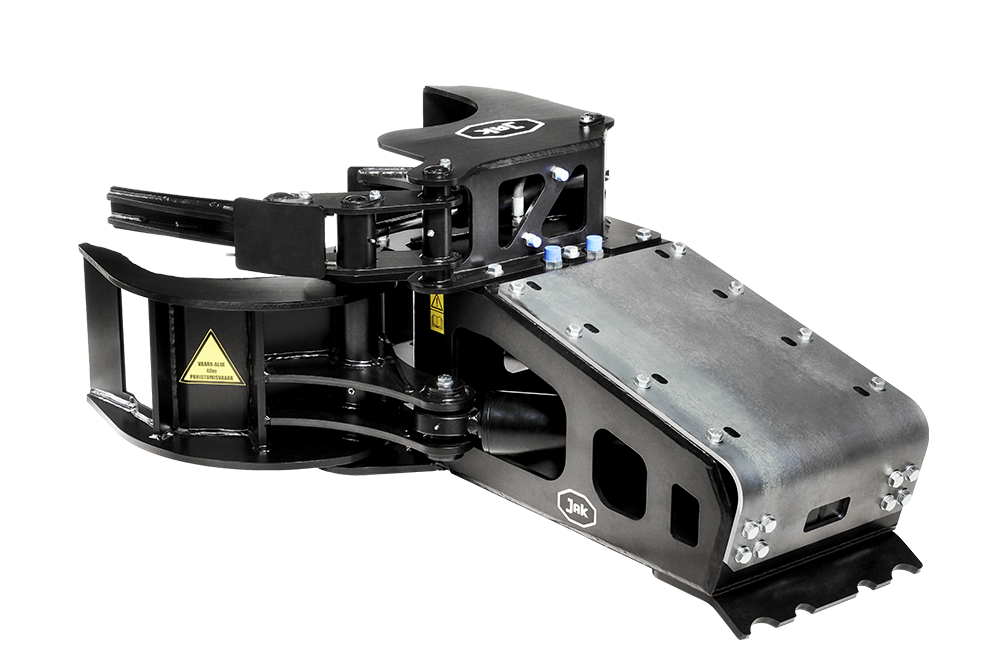

NB: Some images show the optional collector attachment, which allows for multiple cuts in one pass.

*Note: cutting diameter is maximum only for soft wood. Hardwood reduces effective cutting diameter. Maximum cutting capacity is only achieved at max working pressure.

VIEW OUR TREE SHEAR PICTURE & VIDEO GALLERY BELOW

Specifications
  • Product Code: JAK300-C
  • Max Cutting Diameter: 300mm*
  • Suitable Excavator Size: 6 - 20T
  • Working Pressure: 3600-4350psi
  • Required Oil Flow: 60L / min
  • Grapple Opening: 630mm
  • Impact Plate Height: 390mm
  • Weight: 350kg

*Cutting diameter is maximum only for soft wood. Hardwood reduces effective cutting diameter. Maximum cutting capacity is only achieved at max working pressure.

Warranty
  • 12 Months from purchase date
  • Excludes blade, hydraulic hoses, misuse, loss of earnings
  • Excludes transport, travel and freight
  • Warranty is void if JAK is modified

Shipping

Item is Freight Free to your nearest Mainfreight Depot.

We can freight anywhere in NZ - usually for small additional cost. Please ask for a quote.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Gallery

>

JAK Tree Shear Introduction

View our explainer video on the JAK 300C
>

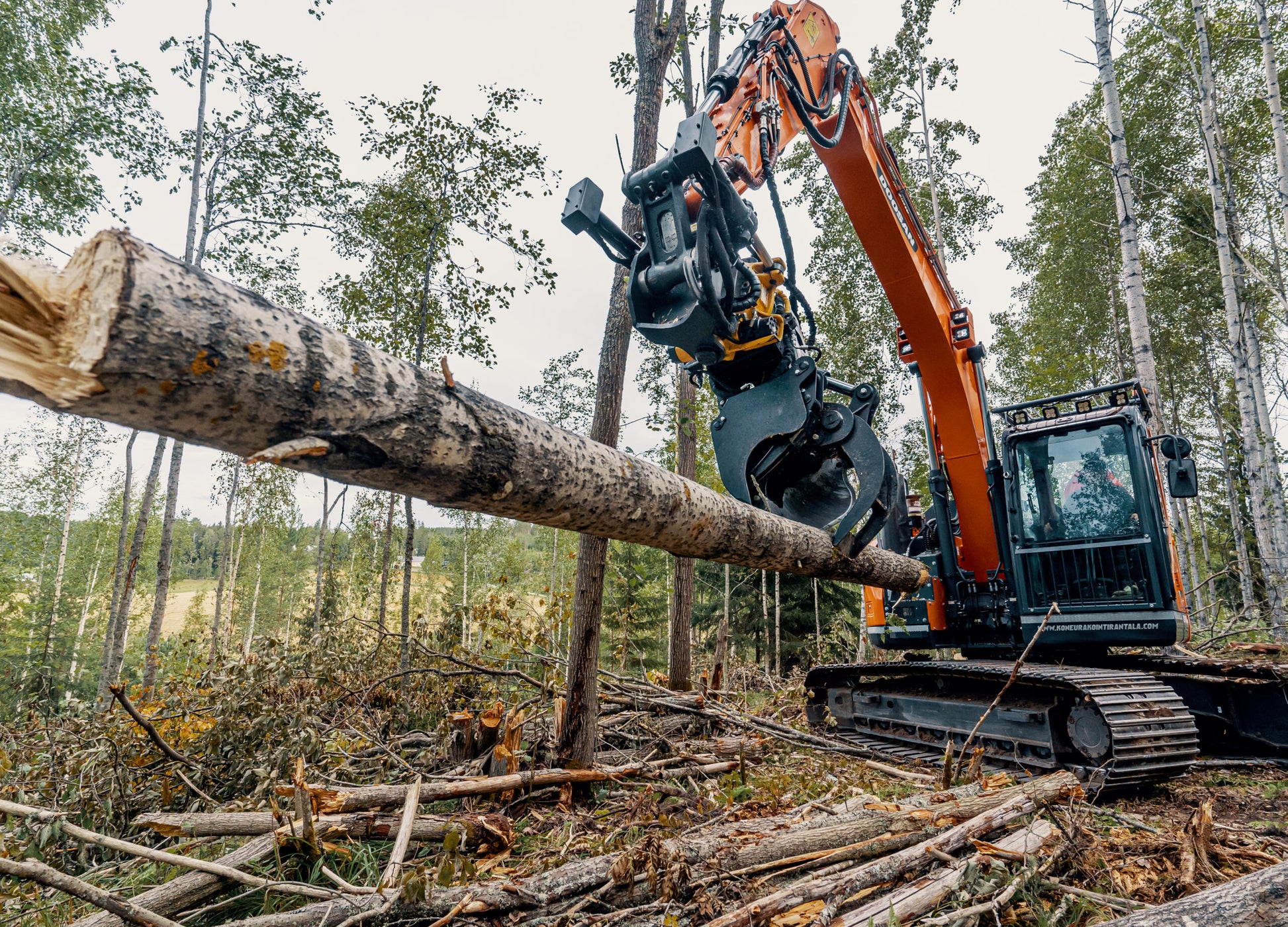

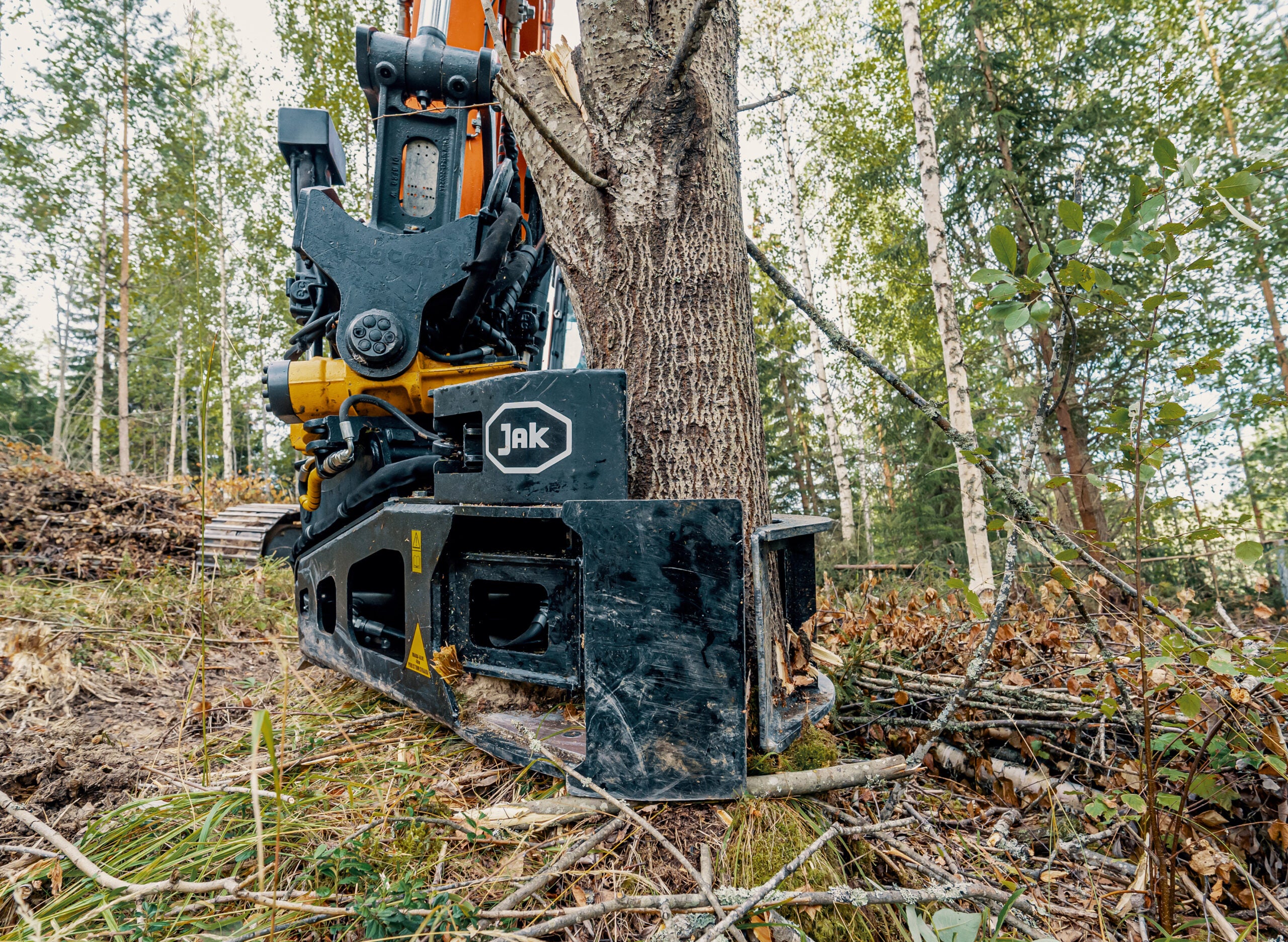

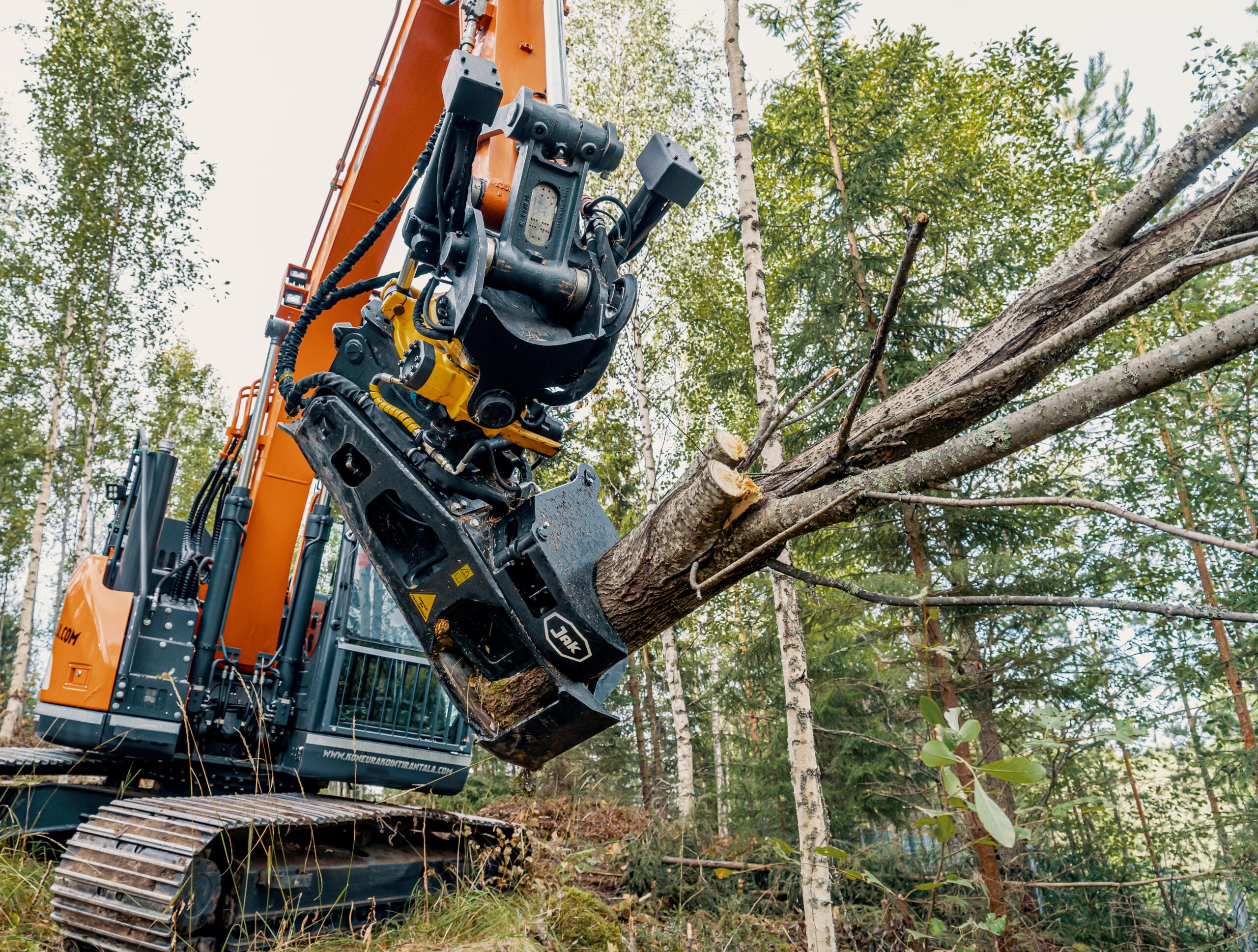

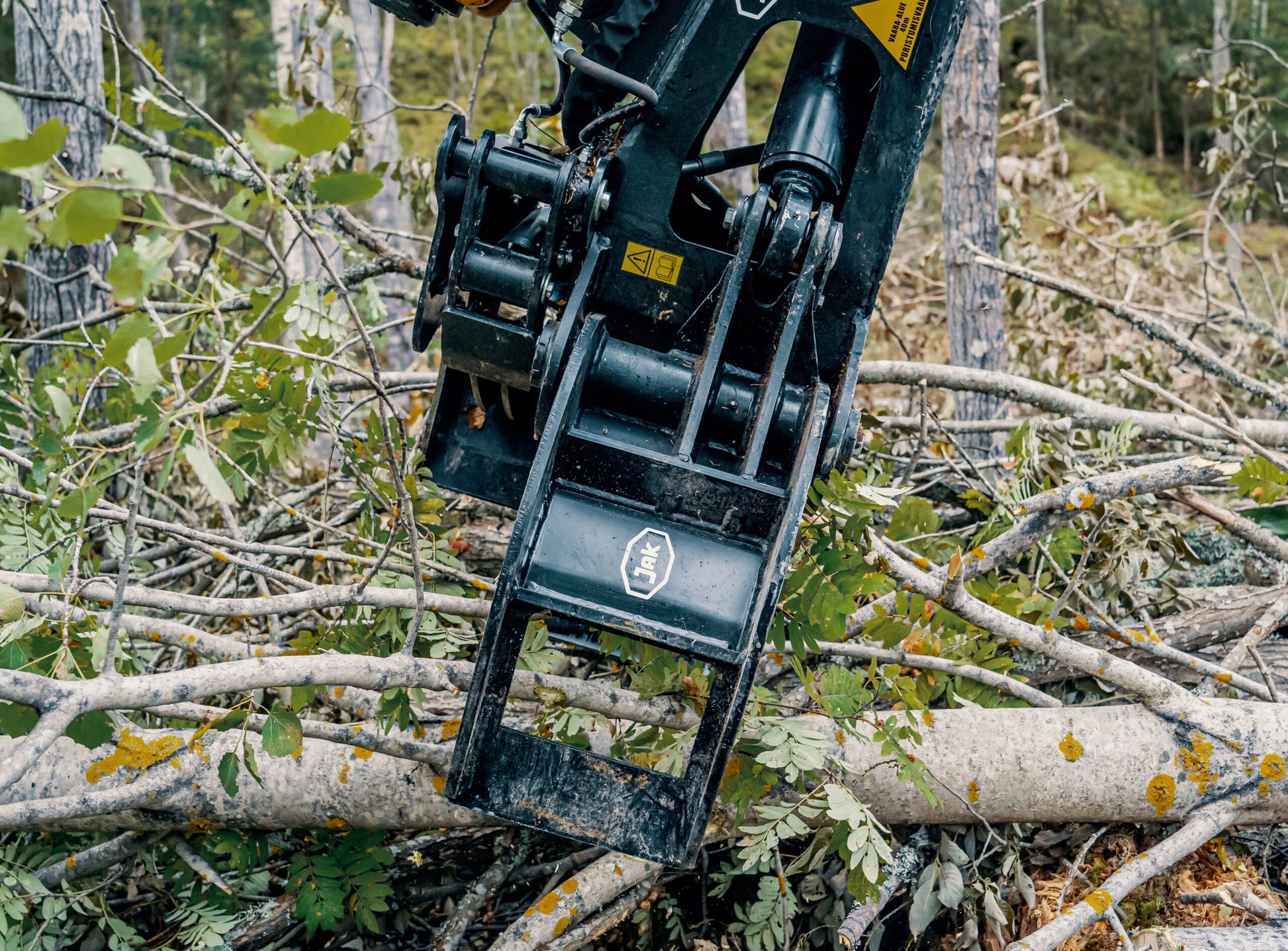

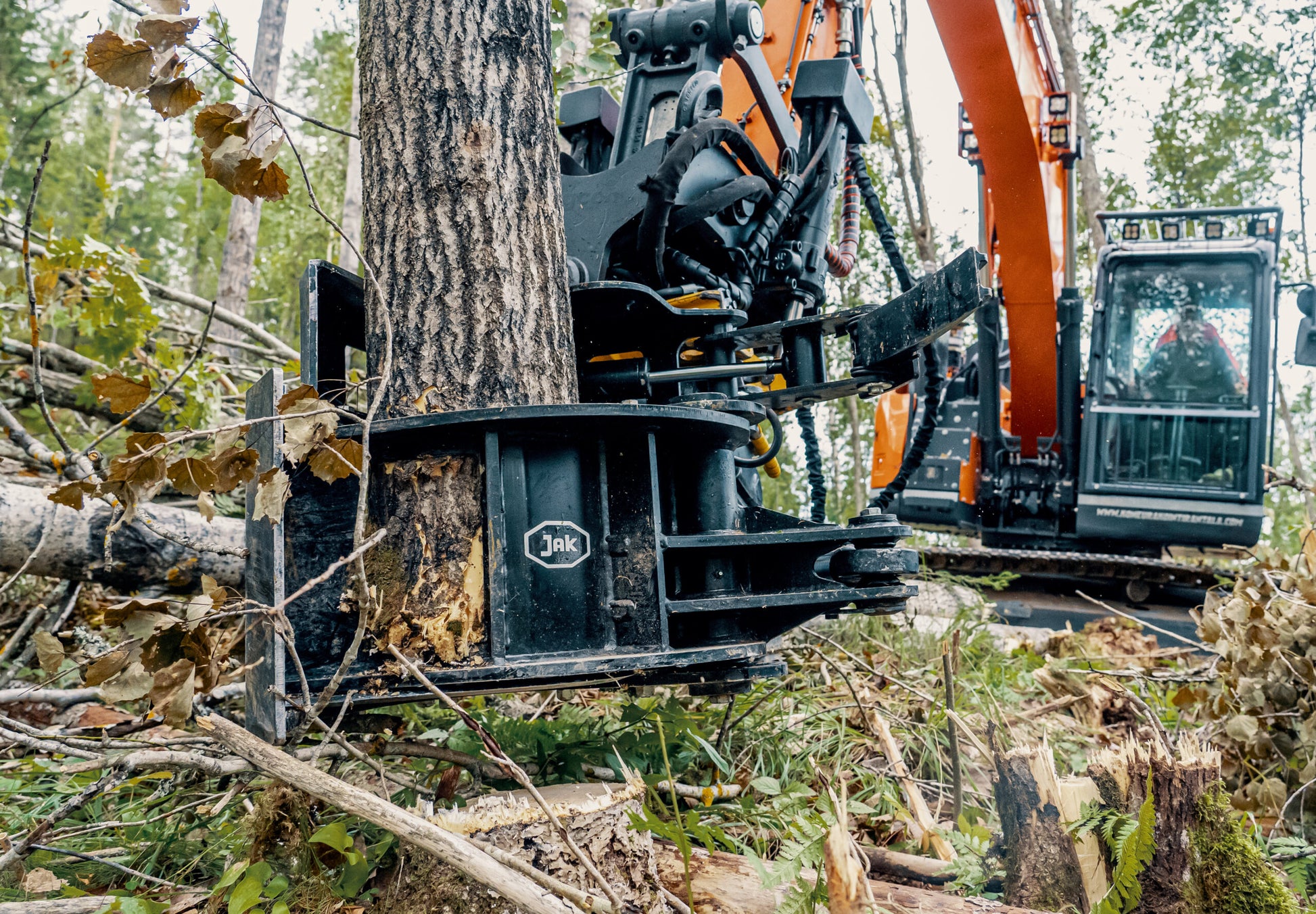

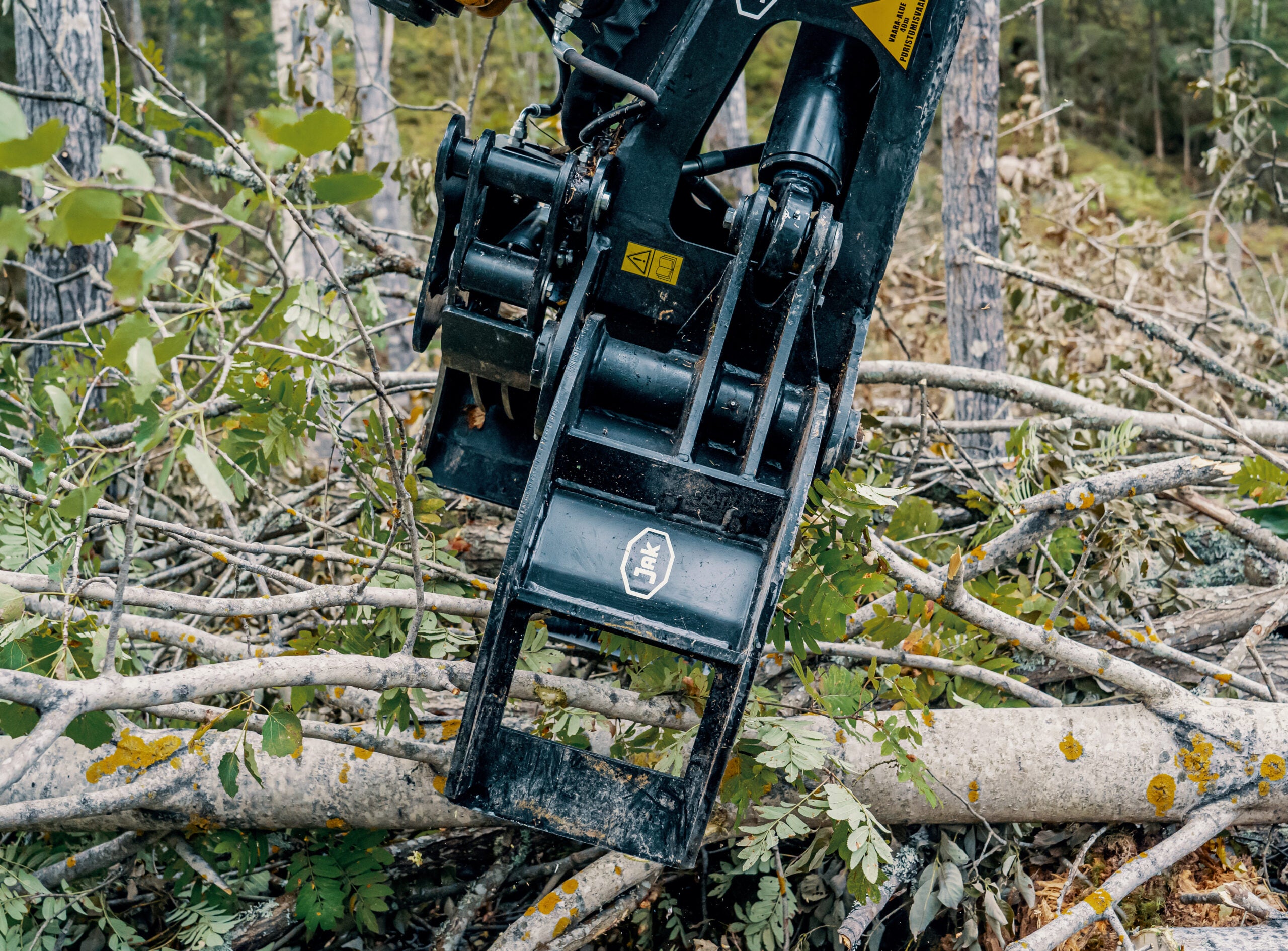

JAK-300C In Action

JAK-300C with collector unit fitted. Showing Blade replacement.
>

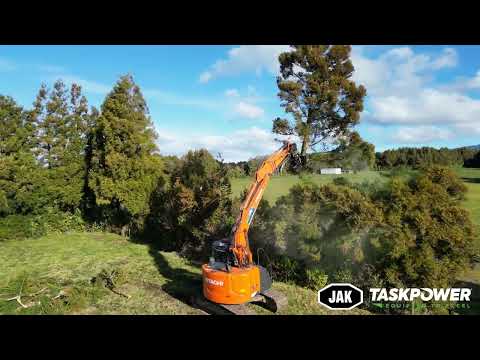

JAK-300B Tree Shear topping hedge in Taranaki
